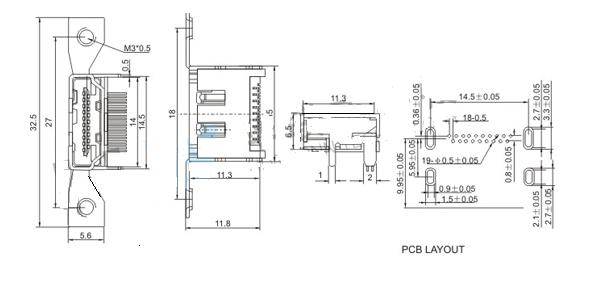

Specifications of HDMI jacks Series
Temperature
-40-70 oC
Withstand Voltage
AC250V(50Hz)1min
Rated load
DC 12V 0.5A
Insertion and Extraction Force
10-35N
Contact Resistance
<0.03Ω
Life
100000cycles
Insulation Resistance
>100MΩ
