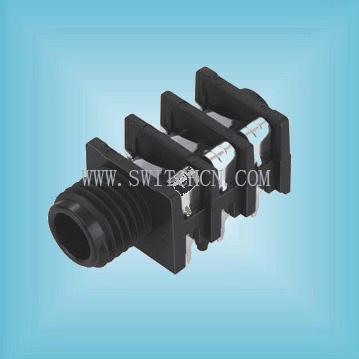

6.35插口系列主要技术指标 Specifications of 6.35 Phone jack Series

使用温度范围Temperature

-20-70 ^oC

耐压Withstand Voltage

AC500V(50Hz)/min

额定负荷Rated load

DC 50V 1A

动作力Actuating Force

5-35N

接触电阻Contact Resistance

<0.02Ω

绝缘电阻Insulation Resistance

>100MΩ
