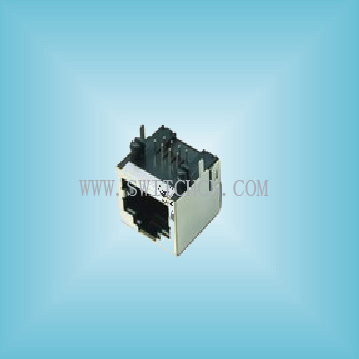

NO.:PCB-811 Name:PCB-811
MORE:

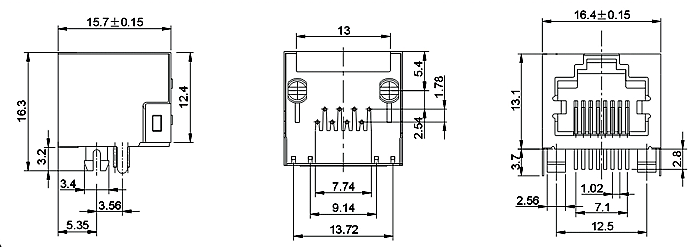

Specifications of PCB Jack Series

Temperature

-40-70 oC

Withstand Voltage

AC1000V(50Hz)/min

Rated load

AC 125V1.5A

Actuating Force

5-15N

Contact Resistance

<0.03Ω

Life

750cycles

Insulation Resistance

>100MΩ
