NO.:DC-004 Name:DC-004
MORE:

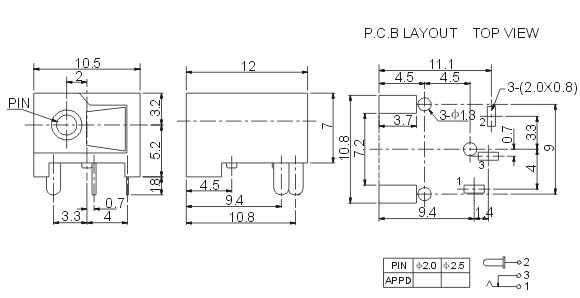

Specifications of DC power jack Series
Temperature
-30-70 oC
Withstand Voltage
AC500V(50Hz)/min
Rated load
DC 30V 0.5A
Insertion and Extraction Force
3-20N
Contact Resistance
<0.03Ω
Life
5000cycles
Insulation Resistance
>100MΩ
