NO.:AV4-8.4-5 Name:AV4-8.4-5
MORE:

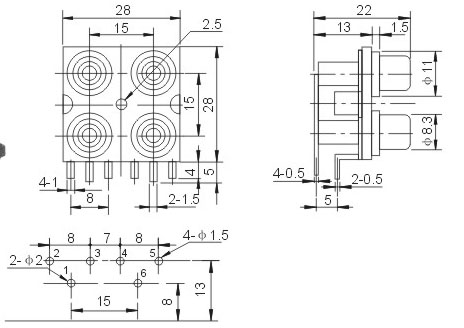

Specifications of AV pin jack board Series
Temperature
-40-70 oC
Withstand Voltage
AC500V(50Hz)/min
Rated load
DC 50V 0.2A
Insertion and Extraction Force
3-25N
Contact Resistance
<0.02Ω
Life
5000cycles
Insulation Resistance
>100MΩ
