PRODUCTS

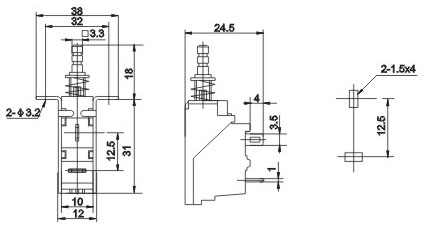

NO.:
TV-5-PS4A
Name:
TV-5-PS4A
MORE:
Specifications of Power Switch Series
Environmental Conditions
-25+85
o
C,
<
95%(40
o
C)
Withstand Voltage
AC1500V,AC3000V
Contact Resistance
<
0.05Ω
Actuating Force
2-8N
Insulation Resistance
>
100MΩ
Life
10000cycles
Note: 1.Rated Load(AC 250V) 2A/8A,4A/32A,5A/80A,8A/128A
2.The spacing betweenthe mounting holes is set according to the requirements of the customers.
3.There are 2 types of mounting hole:unthreaded and threaded.
4.Theleading-out terminal is either an insert-in type or a welding type.
