Specifications of Power Switch Series

Environmental Conditions

-25+85 ^oC,<95%(40^oC)

Withstand Voltage

AC1500V,AC3000V

Actuating Force

2-8N

Life

10000cycles

Note:    1.Rated Load(AC 250V) 2A/8A,4A/32A,5A/80A,8A/128A

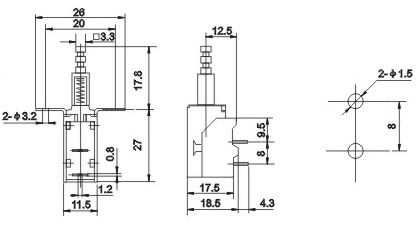

         2.The spacing betweenthe mounting holes is set according to the requirements of the customers.

         3.There are 2 types of mounting hole:unthreaded and threaded.

         4.Theleading-out terminal is either an insert-in type or a welding type.
