NO.:KAN-Z2A Name:KAN-Z2A
MORE:

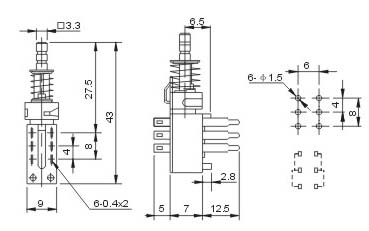

Specifications of Uni-direction Push-button Switch Series
Temperature
-25~55 oC
Withstand Voltage
AC800V(50Hz)/min
Rated load
DV 30V 1A
Actuating Force
2~8N
Contact Resistance
<0.02Ω
Life
<100000cycles
Insulation Resistance
>500MΩ
Note:The switch locking form consists of Self-lock and Non-lock
